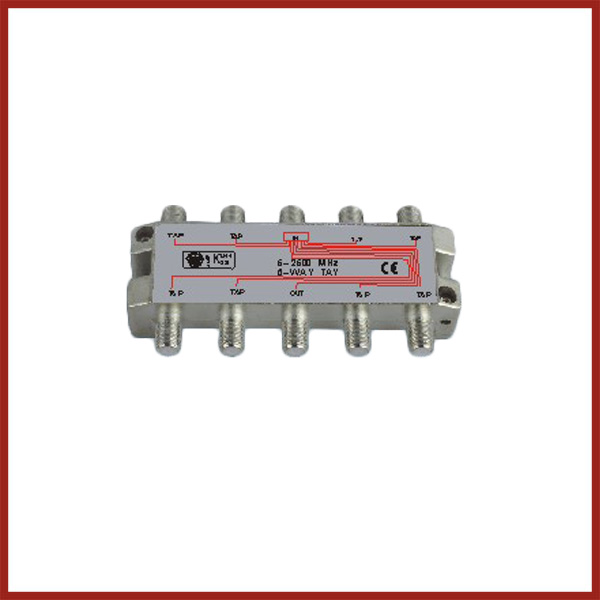

B308




Specification


Tap

Value (dB)

Tap-Loss In-tap Insertion Loss In-Out (Max.dB) Return Loss In/Out/tap(Min.dB) Isolation Out-tap/tap-tap(Min.dB)

5-2150

(MHz)

2150-2450

(MHz)

5-47

(MHz)

47-1000

(MHz)

1000-2500

(MHz)

5-47(MHz) 47-1000(MHz) 1000-2500(MHz) 5-47(MHz) 47-1000(MHz) 1000-2500(MHz)
8-way Tap 20dB 20±2.5 20±3 6.0  6.0  7.0  10/10/10 13/15/12 10/15/12 25/18 20/18 20/18
25dB 25±2.5 25±3 3.0  3.0  3.5  10/12/12 10/10/12 10/10/12 25/20 25/20 25/20
30dB 30±2.5 30±3 2.5  2.5  3.0  10/10/12 12/12/12 12/12/12 35/18 25/20 25/20
