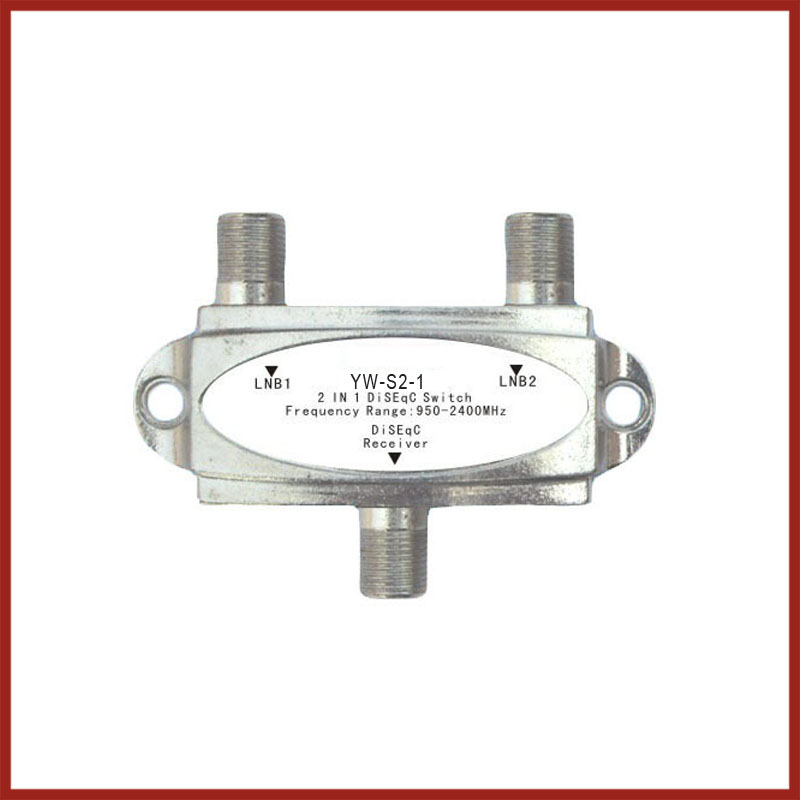

YW-S2-1

Specification:

Model	YW-S2-1
Frequency(MHz)	950~2300
Insertion Loss (dB)	≤5
Switch Isolation(dB)	≥20
Max. DC Current To LNBs(mA)	500

Order

Details

Feature:
*Zinc die-cast housing, nickel-plated
*Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously
*Select one of two satellite signals through DiSEqC commands supplied from satellite receiver
*Inputs selected by DiSEqC Command.
*Compact housing, SMD technology design
*All ports connectors: F-(f) 75Ω
