Home > Products > CATV/MATV/Satellite Splitter (Indoor) > "F"Type 5-1000/2500 MHz Tap

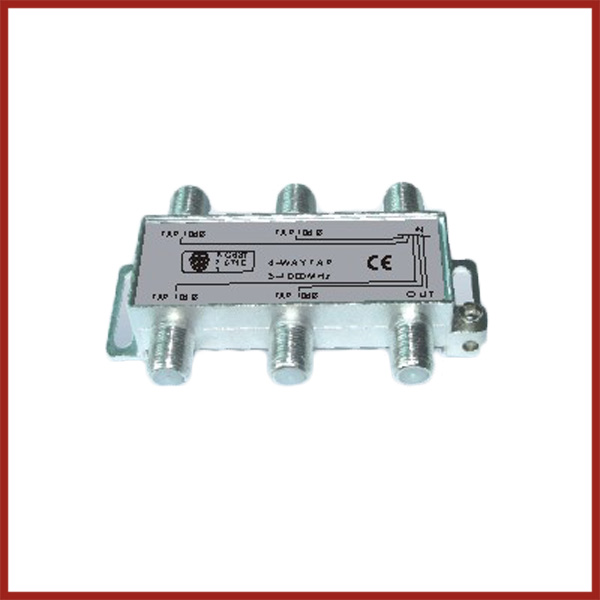

F105

Details

Specification

Tap Value

(dB)

Tap-Loss In-tap

Insertion Loss In-Out (Max.dB)

Return Loss In/Out/tap(Min.dB)

Isolation Out-tap/tap-ap(Min.dB)

5-2150

(MHz)

2150-2450

(MHz)

5-47

(MHz)

47-1000

(MHz)

1000-2500

(MHz)

5-47

(MHz)

47-1000

(MHz)

1000-2500

(MHz)

5-47

(MHz)

47-1000

(MHz)

1000-2500

(MHz)

4-way Tap

12dB

12±1.5

3.2

4.5

18/18/18

22/22/22

17/17/17

17/17/17

27/28

25/28

22/25

22/25

16dB

16±1.5

2.0

2.5

18/18/18

22/22/22

17/17/17

17/17/17

26/30

26/28

25/25

25/25

20dB

20±1.5

1.0

1.5

18/18/18

22/22/22

17/17/17

17/17/17

35/30

32/28

25/25

25/25

24dB

24±1.5

0.8

1.0

20/20/20

20/20/20

17/17/17

17/17/17

45/30

35/28

30/25

30/25

30dB

30±1.5

0.8

1.0

20/20/20

20/20/20

17/17/17

17/17/17

48/30

40/30

35/35

35/25
