Home > Products > CATV/MATV/Satellite Splitter (Indoor) > "T"Type 5-1000/2500 MHz Splitter

Loading...

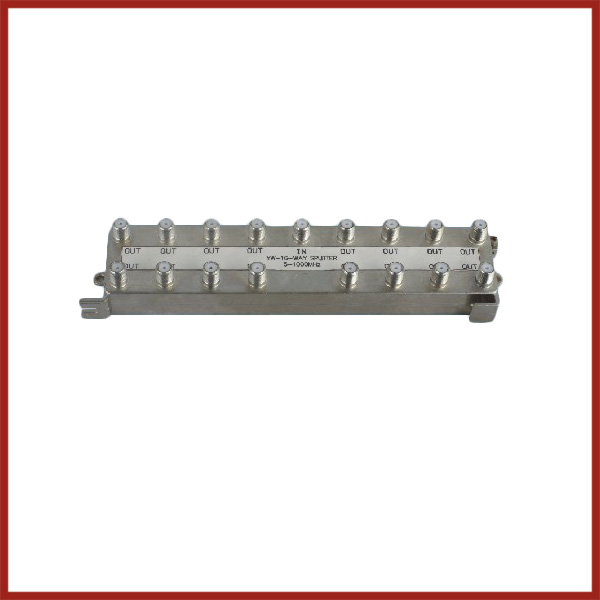

T1010 T1012 T1014 T1016
Order

  • Details



ITEM   (SPLITTERS) FREQUENCY RANGE (MHz） 10-WAY 12-WAY 14-WAY 16-WAY
T1010  T1012 T1014  T1016
INSERTION    LOSS(IN-OUT) 5-47 13.0 12.5 14.0 14.0
47-470 13.5 14.0 14.5 14.5
470-750 14.0 14.5 15.5 15.5
750-1000 14.5 16.0 16.5 18.5
RETURN       LOSS (IN) 5-47 14.0 16.0 16.5 16.0
47-470 16.0 16.0 16.0 16.0
470-750 16.0 16.0 16.0 16.0
750-1000 16.0 16.0 16.0 16.0
RETURN       LOSS(OUT) 5-47 16.0 14.0 16.0 16.0
47-470 18.0 18.0 16.0 16.0
470-750 16.0 16.0 16.0 16.0
750-1000 16.0 16.0 16.0 16.0
ISOLATION   (OUT-OUT) 5-47 20.0 20.0 23.0 22.0
47-470 20.0 20.0 23.0 22.0
470-750 20.0 20.0 23.0 22.0
750-1000 20.0 20.0 23.0 22.0
