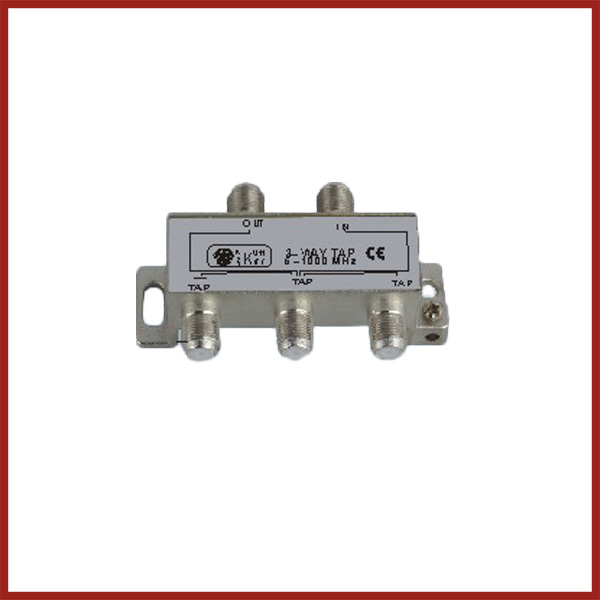

U303




Specification  Tap Value (dB)  Tap   Loss Insertion Loss    In-Out(Max.dB) Return Loss   In/Out/Tap(Min.dB) Isolation             Out-tap/tap-tap(Min.dB)
5-1000 (MHz) 5-47(MHz) 47-1000 (MHz) 5-47 (MHz) 47-1000 (MHz) 5-47(MHz) 47-1000 (MHz)
3-way Tap 8dB 8±1.5 7.2 8.2 20/20/20 20/20/20 25/20 20/20
10dB 10±1.5 3.5 4.5 17/17/16 18/16/18 25/21 20/21
12dB 12±1.5 3.3 3.6 18/17/18 19/18/18 27/23 20/20
16dB 16±1.5 1.3 2.0  18/18/18 20/20/20 31/24 21/21
20dB 20±1.5 1.0  1.5 18/18/18 18/18/18 35/25 25/23
24dB 24±1.5 1.0  1.3 18/18/18 18/16/18 38/32 29/25
