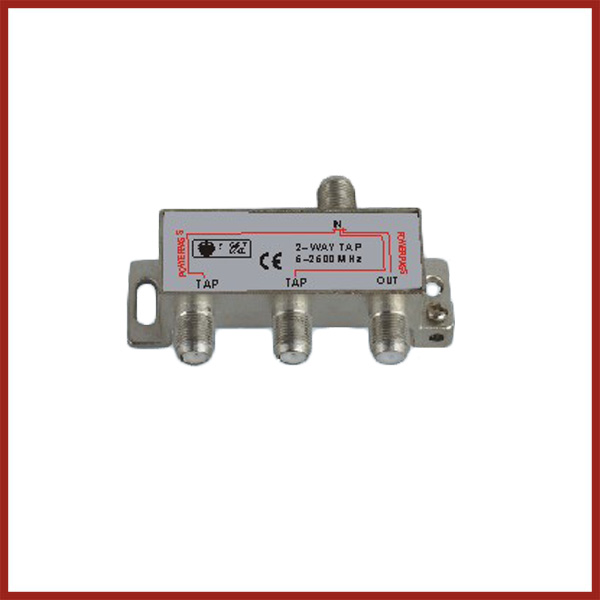

U402




Specification


Tap

Value (dB)

Tap-Loss In-tap Insertion Loss In-Out (Max.dB) Return Loss In/Out/tap(Min.dB) Isolation Out-tap/tap-tap(Min.dB)

5-2150

(MHz)

2150-2450

(MHz)

5-47

(MHz)

47-1000

(MHz)

1000-2500

(MHz)

5-47(MHz) 47-1000(MHz) 1000-2500(MHz) 5-47(MHz) 47-1000(MHz) 1000-2500(MHz)
2-way Tap 10dB 10±2 10±2.5 4.0  4.5  5.5 10/10/10 10/10/10 10/10/10 20/18 20/18 18/18
12dB 12±2.5 13.5±2.5 4.5 4.5 5.5 10/10/10 10/10/10 10/10/10 20/18 20/18 20/16
